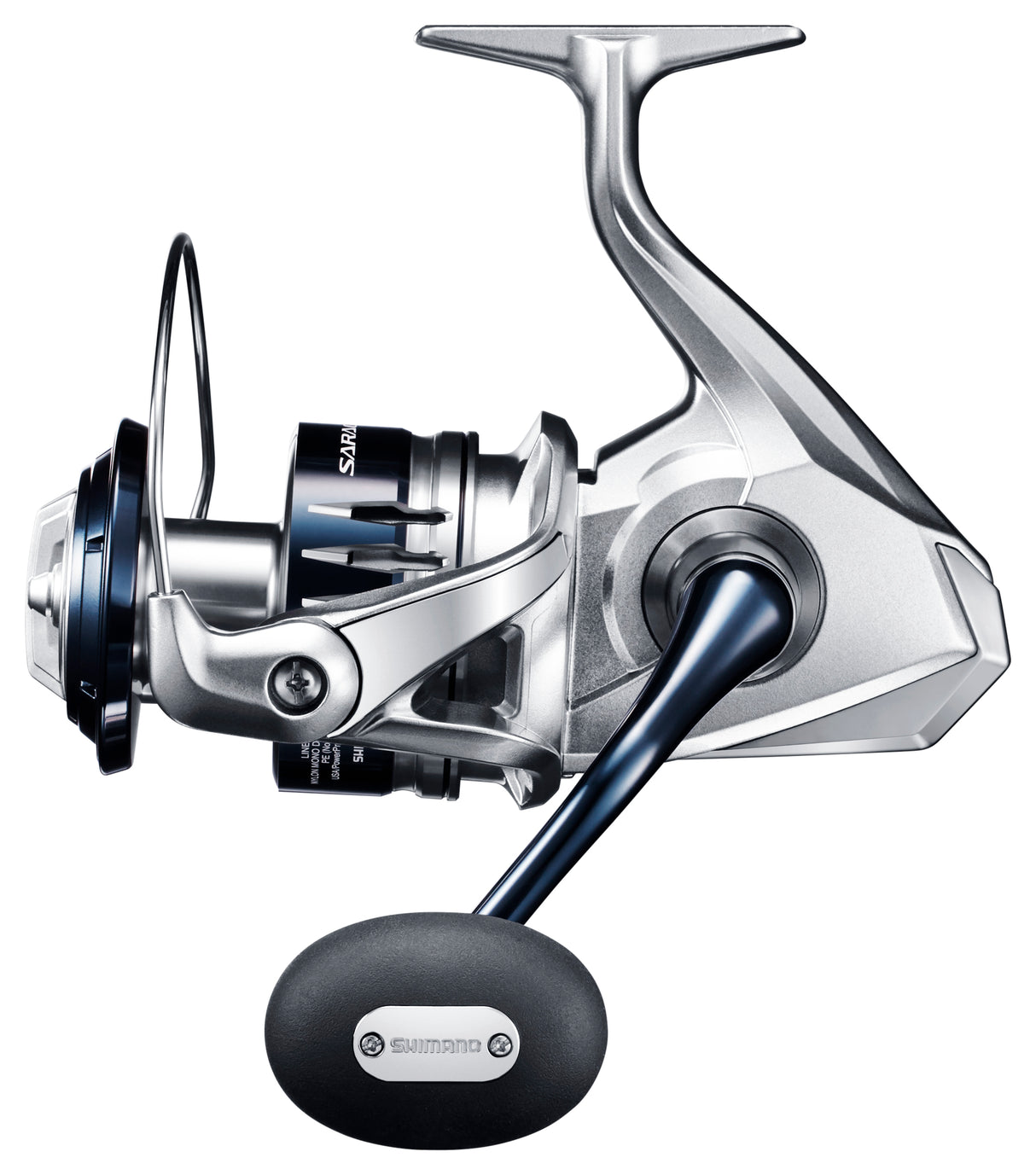

SHIMANO Saragosa SW A Spinning Reel

The Shimano Saragosa SW A Spinning Reel sets the new standard for saltwater performance. Engineered with Infinity Drive Technology, it delivers superior winding torque under load, giving you the edge against powerful game fish.

Free Shipping $99+
Captain-Guided Support
Tournament Tested
Best Price Match
1 in stock — Almost gone!

Free shipping over $99

SHIMANO | SKU: 022255240406

YOUR ITEM

$324.99
Best price match — guaranteed
Shipping calculated at checkout.

4 payments of $81.24

with Shop Pay

Size
Spool it for me ?
  • No
  • Yes

Ready for pickup in 4 business hrs

4301 N Federal Hwy, Pompano Beach FL · Get directions

Select Local pickup at checkout

Product Highlights
SHIMANO Saragosa SW A Spinning Reel

The Shimano Saragosa SW A Spinning Reel sets the new standard for saltwater performance. Engineered with Infinity Drive Technology, it delivers superior winding torque under load, giving you the edge against powerful game fish. The unyielding HAGANE Body and HAGANE Gear refuse to flex, maintaining smooth, consistent reeling through the toughest battles. Full IPX8 waterproof protection, waterproof Cross Carbon drag, and X-Protect technology shield against saltwater corrosion and spray. From inshore flats to offshore depths, jigging structure to casting live bait, the Saragosa SW A performs flawlessly in any condition. Built for anglers who demand a reel that stays smooth and reliable when it counts most.

Features:

  • Infinity Drive Technology: increased winding torque under load for superior power
  • HAGANE Body & Gear: rigid construction eliminates flex and ensures eternally smooth reeling
  • IPX8 Waterproof Rating: complete protection against saltwater immersion
  • Cross Carbon Drag: waterproof drag system with extended range and durability
  • X-Protect & X-Shield: advanced water resistance technology for long-lasting performance
  • S A-RB Bearings: corrosion-resistant bearings with dual-sided shields
  • One-Piece Bail: seamless design reduces friction and prevents line snags

Spooling Option

Select from standard spooling options listed in the drop-down menu above, or let us know how you would like your reel spooled. Custom spooling including top-shots, wind-ons, hollow-core backing, and fluorocarbon are available. Call or send a note with your requirements and we’ll advise costs. All reels are machine spooled under ideal tension, braid is spooled with approximately 50 feet of mono backing. Wind-on leaders are offered for both hollow core and non-hollow braid, hollow core is spliced and non-hollow braid is connected loop-to-loop with a bimni twist.

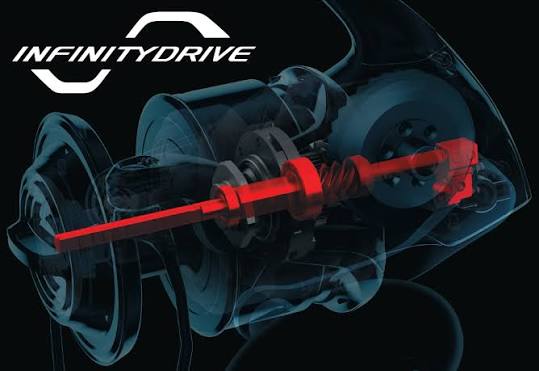

Infinity Drive winds under load

Infinity Drive winds under load

Infinity Drive moves the main shaft onto a low-friction bushing and away from the pinion gear, with a proprietary surface treatment that drops rotational torque dramatically. The result is a reel that keeps
cranking smoothly when a big fish has the rod buried — none of the staggered, hard-handle feel you get from a standard
spinner under heavy load. This is the upgrade that separates the Saragosa SW from the prior generation; it's the single
biggest reason to step up from an older Saragosa or a comparable mid-tier offshore spinner.

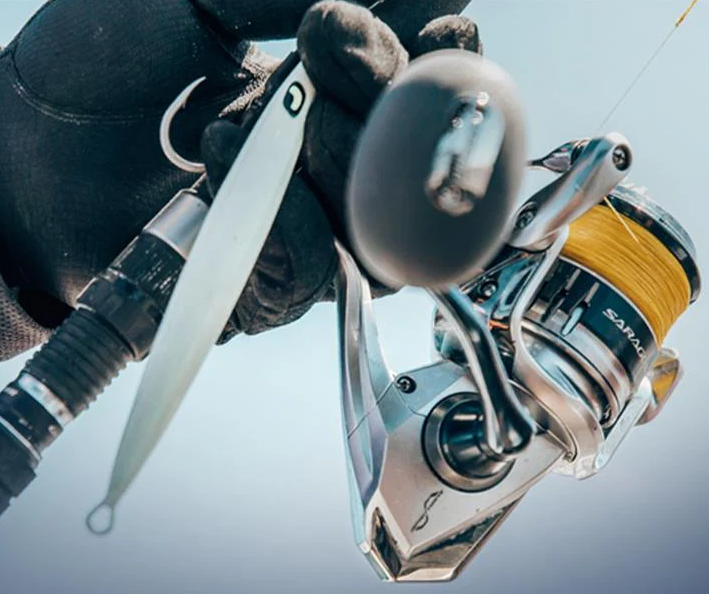

IPX8 sealing top to bottom

IPX8 sealing top to bottom

Every Saragosa SW carries an IPX8 waterproof rating across the body, with X-Shield and X-Protect sealing the bail roller, line roller, and handle knob against salt intrusion. The drag itself is a waterproof Cross Carbon Drag stack that won't drink water if the reel gets buried during a wave or a sloppy boatside fight — drag pressure stays smooth and predictable wet or dry. Combined with saltwater-grade A-RB bearings, this reel is built to be rinsed and run season after season.

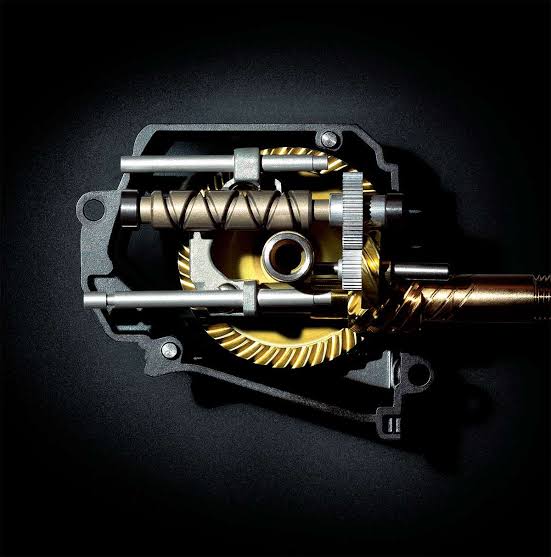

HAGANE Body, HAGANE Gear

HAGANE Body, HAGANE Gear

The rigid one-piece HAGANE Body holds its shape under the worst of an offshore fight — no flex, no creak, no drift in the gear mesh when you're cranking against a tuna sound or pulling a GT off the reef. Inside, the HAGANE Gear is cold-forged from a single piece of metal rather than cut, which produces a gear surface that runs glass-smooth out of the box and stays smooth for the life of the reel. X-Ship pairs the two with a tighter pinion-gear seat for efficient power transfer.

Specifications

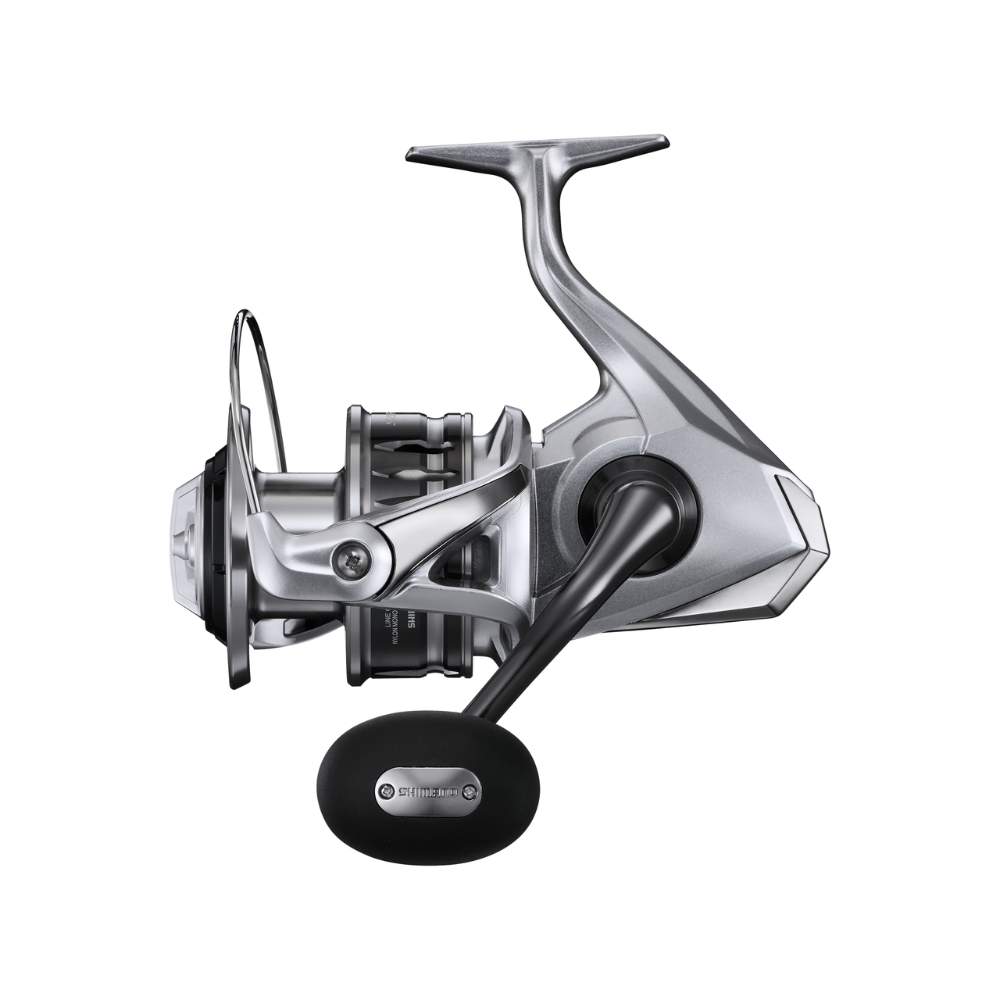

SHIMANO Saragosa SW A Spinning Reel

Type
Saltwater Spinning
Hand
Right/Left (convertible)
Spool Material
Cold-forged Aluminum
Body Material
One-piece HAGANE (Aluminum)

Compare the Series
SHIMANO Saragosa SW A Spinning Reel

Spec
SHIMANO Saragosa SW A 5000XG
$324.99
SHIMANO Saragosa SW A 6000HG
$324.99
SHIMANO Saragosa SW A 10000PG
$364.99
SHIMANO Saragosa SW A 14000XG
$364.99
SHIMANO Saragosa SW A 18000HG
$414.99
SHIMANO Saragosa SW A 20000PG
$464.99
SHIMANO Saragosa SW A 25000
$464.99
Reel TypeSaltwater SpinningSaltwater SpinningSaltwater SpinningSaltwater SpinningSaltwater SpinningSaltwater SpinningSaltwater SpinningSaltwater Spinning
Gear Ratio6.2:15.7:15.6:14.9:16.2:15.7:14.4:14.4:1
Max Drag22lb22lb35lb33lb33lb49lb49lb44lb
Weight15.9oz16oz23.8oz24.3oz24.7oz32.3oz33oz33.9oz
Line CapacityMono: 10-240, 12-195, 14-165 · Braid: 20-245, 30-225, 40-175Mono: 12-265, 16-170, 20-120 · Braid: 30-295, 50-195, 65-140Mono: 14-300, 16-250, 20-185 · Braid: 40-340, 50-265, 65-215Mono: 16-320, 20-220, 25-175 · Braid: 50-360, 65-290, 80-215Mono: 16-360, 20-260, 25-190 · Braid: 50-400, 65-315, 80-240Mono: 20-415, 25-340, 30-280 · Braid: 50-600, 65-440, 80-360Mono: 20-460, 25-380, 30-320 · Braid: 65-490, 80-400, 100-340Mono: 20-570, 25-490, 30-360 · Braid: 65-630, 80-520, 100-440
Retrieve41in41in42in40in53in51in41in45in
Bearings5/15/15/15/15/16/16/16/1
HandRight/LeftRight/LeftRight/LeftRight/LeftRight/LeftRight/LeftRight/LeftRight/Left
Spool Material
Body MaterialAluminumAluminumAluminumAluminumAluminumAluminumAluminumAluminum

Field Report
Topwater Tuna on the Saragosa SW A

Topwater Tuna on the Saragosa SW A

This is the first reel I've fished in this price range where the winding doesn't get rough when you're really pulling on a fish. That's the headline, and everything else flows from it. The body feels rigid, the way a much more expensive reel feels rigid. Drag pressure holds where you set it, wet or dry. The handle has a solid throw with no play, the bail closes cleanly on every cast, and the drag knob clicks through in even increments instead of the mushy half-positions you get on cheaper spinners. After a full day of throwing poppers and stickbaits, I had nothing to complain about.

The reel got tested on a fish that ate a chugger and went straight down. Set the drag a little above strike, and the fish made two long runs without any change in pressure or feel. The retrieve never got sluggish on the lift, which is where mid-range spinners usually start to show their limits. Twelve minutes to color, and the fish swam off strong. We boated a couple more in the same class through the afternoon, and the reel came back to the dock feeling exactly like it left.

MINDY STEVENSON

Tuna

Before you buy

Frequently asked questions.

Still unsure? Call +1-877-337-9591. You'll talk to a builder, not a sales rep.

  • Right-hand or left-hand retrieve?

    Every Saragosa SW A ships as a convertible - the handle pops off the right side and
    threads into the left side with the wrench that comes in the box. No separate SKUs for handedness; the same reel works for either retrieve. Counter-balance is symmetric across the rotor, so there's no rotational quirk when you swap.

  • What line should I spool a Saragosa SW with?

    Braid for everything except specialty applications. The Saragosa is built for
    hollow-core or solid braid in the rating that matches your target fish - 30lb braid on the 5000 for inshore, 50-65lb on the 8000-14000 for general offshore, 65-80lb on the 18000-20000 for heavy work, 80-100lb on the 25000 for tuna and GT. Add a 20-30ft fluorocarbon topshot for abrasion resistance and bite-leader strength.

  • Is the drag really waterproof if I get the reel buried in a wave?

    Yes - the Cross Carbon Drag stack is sealed by the IPX8 body and the X-Shield gaskets
    at the line roller and bail. Drag pressure stays the same wet or dry, and a dunking doesn't introduce water into the drag washers themselves. That said: any reel gets longer service life with a freshwater rinse after every salt trip. Don't pressure-wash the body, don't crank the drag knob down all the way for storage (back it off two clicks to keep the washer stack from compressing), and you'll get many years out of one of these.

  • How does the Saragosa SW A compare to the Stella SW?

    Both share Shimano's HAGANE Body and HAGANE Gear platform, both feature Infinity Drive, and both run IPX8 sealing. The Stella SW steps up with a higher-grade roller clutch, more bearings (typically 13/1 vs. 5/1 on the Saragosa), a higher-precision X-Tough Drag system tuned for tournament use, and Shimano's MicroModule II gearing. For most anglers - including most offshore captains we work with - the Saragosa SW A does everything the Stella will do at roughly a third of the price. The Stella is the right call when you're tournament-fishing and need the absolute longest service life under daily heavy use.

  • Which Saragosa size do I need for my fishery?

    Rough rule of thumb based on what we see locally: 5000 for inshore snook, redfish, and
    small jacks; 6000 and 8000 for yellowtail, kingfish, and cobia work; 10000 and 14000 for offshore casting on mahi, blackfin tuna, and false albacore; 18000 and 20000 for big GT, cubera, and yellowfin tuna casting; 25000 for stand-up tuna and heavy popping on giant trevally. Drag goes up with size (22lb on the 5000/6000 up to 49lb on the 18000/20000),
    and line capacity goes up alongside. If you're between two sizes, size up - the extra capacity and drag headroom matter more than the small weight penalty.

  • What's the difference between XG, HG, and PG?

    The suffix is the gear-ratio variant. XG (Extra-High Gear, 6.2:1) picks up the line
    fastest - best for casting work where you need to keep a popper or a stick-bait moving. HG (High Gear, ~5.7:1) is the all-around middle - balanced retrieve for live bait, jig work, and most general saltwater use. PG (Power Gear, 4.4-4.9:1) trades retrieve speed for cranking power under load - the right call for vertical jigging in deep water or for fighting heavy bottom fish where you need to lift more than retrieve. Same body, same drag system, same bearings
    across the three - pick the gear ratio that matches how you'll fish the reel most.
